| Brand-specific features |
| HP dynamic security | Yes |
| HP Auto-On/Auto-Off | Yes |
| HP ePrint | Yes |
| HP Security tools | Identity management: Kerberos authentication; LDAP authentication; 1000 user PIN codes; Optional HP and 3rd party advanced authentication solutions (e.g.: badge readers); Network: IPsec/firewall with Certificate; Pre-Shared Key and Kerberos authentication; Supports WJA-10 IPsec configuration Plug-in; 802.1X authentication (EAP-PEAP; EAP-TLS); SNMPv3; HTTPS; Certificates; Access Control List; Data: Storage Encryption; Encrypted PDF & Email (uses FIPS 140 validated cryptographic libraries from Microsoft); Secure Erase; SSL/TLS (HTTPS); Encrypted Credentials; Device: Security lock slot; USB port disablement; Hardware integration pocket for security solutions; Intrusion Detection with Red Balloon Security Technology - Constant in-device monitoring for attacks; SureStart Secure Boot - BIOS Integrity Checking with self-healing capability; Whitelisting - loads only known good code (DLLs, EXEs, ...); Connection Inspector - helps ensure network connections to device are safe; Security management: Compatible with HP JetAdvantage Security Manager; HP Printer Security Plugin for Microsoft SCCM; Device Security Syslog Messages processed and accessable in ArcSight, Splunk, and McAfee(ESM) SIEMs |
| Design |

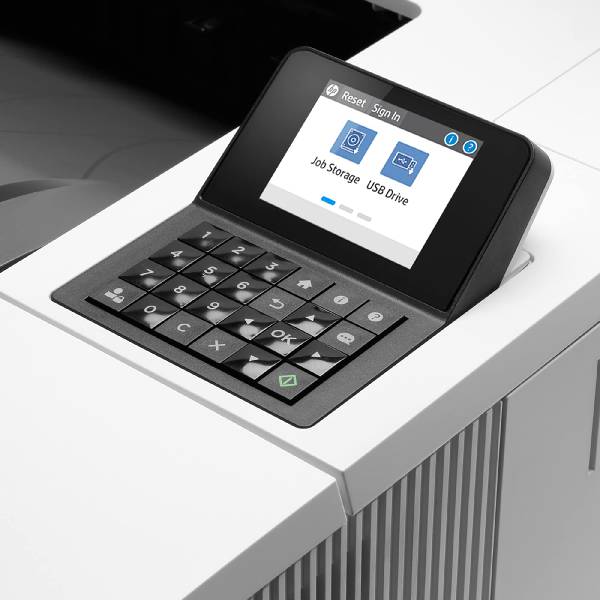

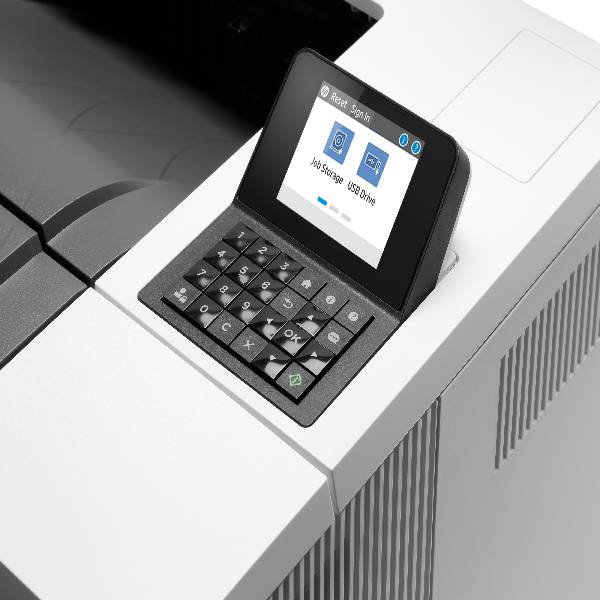

| Display | LCD |
| Built-in display | Yes |
| Market positioning | Business |
| Colour display | Yes |
| Certification | CISPR 22:2008 (International) - Class A, CISPR32:2012 (International) - Class A, EN 55032:2012 (EU) - Class A, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010, EMC Directive 2014/30/EU, Issue 6 Class A. Other EMC approvals as required by individual countries. |
| Control type | Buttons |
| Display diagonal | 6.86 cm (2.7") |
| Product colour | White |
| Features |
| Number of print cartridges | 1 |
| Recommended duty cycle | 2000 - 7500 pages per month |
| Printing colours | Black |
| Replacement cartridges | CF289A HP 89A Black Original LaserJet Toner Cartridge (5,000 pages);CF289X HP 89X High Yield Black Original LaserJet Toner Cartridge (10,000 pages);CF289Y HP 89Y Extra High Yield Black Original LaserJet Toner Cartridge (20,000 pages) |
| HP segment | Business |
| Page description languages | PostScript 3, PDF 1.7, PCL 6 |
| Country of origin | Brazil, Japan, Philippines |
| Printer fonts | Scalable, TrueType, Windows, PCL, PostScript |
| Input & output capacity |
| Maximum input capacity | 2300 sheets |
| Multi-Purpose tray | Yes |
| Maximum number of input trays | 5 |
| Paper tray 2 input capacity | 550 sheets |
| Multi-Purpose tray input capacity | 100 sheets |
| Paper tray 1 input capacity | 100 sheets |
| Maximum output capacity | 250 sheets |
| Logistics data |
| Layers per pallet | 5 pc(s) |
| Pallet gross weight | 369.4 kg |
| Products per pallet | 30 pc(s) |
| Harmonized System (HS) code | 84433210 |
| Network |
| Mobile printing technologies | Mopria Print Service, HP ePrint, Apple AirPrint, Google Cloud Print |
| Ethernet LAN data rates | 1000 Mbit/s |
| Security algorithms | SNMPv3, SSL/TLS, EAP-PEAP, EAP-TLS, FIPS 140, HTTPS, IPSec |
| Network ready | Yes |
| Bluetooth | Yes |
| Operational conditions |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage temperature (T-T) | -20 - 40 °C |
| Operating temperature (T-T) | 10 - 32.5 °C |
| Other features |
| UNSPSC-code | 43212105 |
| Printing | Mono printing |
| Acoustic pressure emissions bystander (ready) | 25 dB |
| Acoustic power emissions (ready) | 39 dB |
| Recommended operating temperature range (T-T) | 15 - 27 °C |

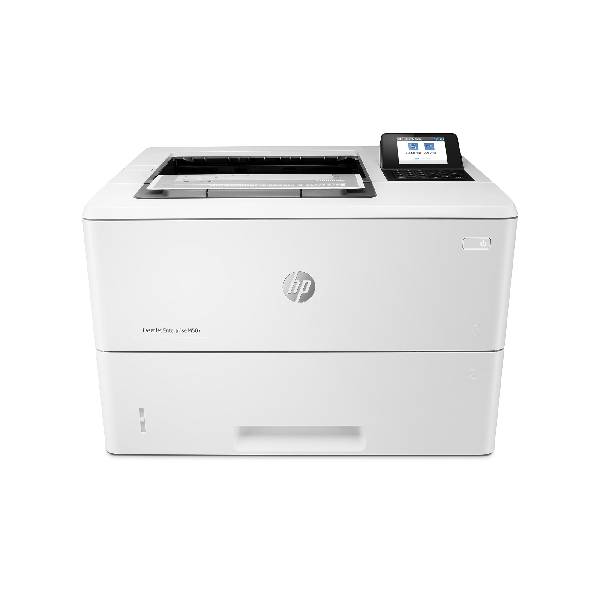

| Box contents | HP LaserJet Enterprise M507dn Printer; HP Original LaserJet Toner Cartridge (5,000 pages); Regulatory flyer (CD replacement); Unpack flyer; Installation guide; Power cord; Warranty cards; Support flyers/number list |
| Recommended humidity operating range | 30 - 70% |
| Electromagnetic compatibility | CISPR 22:2008 (International) - Class A, CISPR32:2012 (International) - Class A, EN 55032:2012 (EU) - Class A, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010, EMC Directive 2014/30/EU, Issue 6 Class A. Other EMC approvals as required by individual countries. |
| Pallet dimensions (W x D x H) (imperial) | 1198.9 x 1000.8 x 2481.6 mm (47.2 x 39.4 x 97.7") |
| Pallet weight (imperial) | 369.4 kg (814.3 lbs) |
| Compatible operating systems | Windows Client OS (32/64 bit), Win10, Win8.1, Win 8 Basic, Win8 Pro, Win8 Enterprise, Win8 Enterprise N, Win7 Starter Edition SP1, UPD Win7 Ultimate, Mobile OS, iOS, Android, Mac, Apple macOS Sierra v10.12, Apple macOS High Sierra v10.13, Apple macOS Mojave v10.14, Discrete PCL6 Printer Driver, For more information on the supported operating systems go to http://support.hp.com, Enter your product name and search, Click on User Guides and enter your product name and search for User Guide, Search for your (Product Name) - User Guide, Search for the Supported Operating Systems section, UPD PCL6 / PS Printer Drivers, Supported Operating systems, For more information on the supported operating systems see http://www.hp.com/go/upd |
| Typical electricity consumption (TEC) number | Blue Angel: 1.257 kWh/Week; Energy Star 3.0: 0.420 kWh/Week |
| Envelope feeder | No |
| Custom media sizes | Tray 1: 76.2 x 127 to 215.9 x 355.6 mm; Tray 2: 105 x 148 to 215.9 x 355.6 mm; Optional 550 sheet Tray: 105 x 148 to 215.9 x 355.6 mm |
| Recommended system requirements | 2 GB available hard disk space; Internet connection; USB port; Internet browser; for additional OS hardware requirements.
2 GB available hard disk space; Internet connection or USB port; OS hardware requirements. |
| Packaging content |
| Warranty card | Yes |
| Included cartridge capacity (black) | 5 pages |
| Packaging data |
| Package height | 466 mm |
| Package depth | 398 mm |
| Package weight | 14.3 kg |
| Package width | 497 mm |
| Paper handling |
| Paper tray media weight | 60 - 200 g/m² |
| JIS B-series sizes (B0...B9) | B5, B6 |
| Custom media width | 76.2 - 215.9 mm |
| ISO A-series sizes (A0...A9) | A4, A5, A6 |
| Paper tray media types | Plain paper, Bond paper, Recycled paper, Envelopes, Card stock, Labels, Transparencies, Rough paper |
| Non-ISO print media sizes | Oficio, 16K |
| ISO C-series sizes (C0...C9) | C5, C6 |
| Photo paper sizes | 10x15 cm |
| Envelopes sizes | B5, C5, C6, DL |
| Custom media length | 127 - 355.6 mm |
| ISO B-series sizes (B0...B9) | B5 |
| Performance |
| Memory slots | 1 |
| Built-in processor | Yes |
| Maximum internal memory | 1536 MB |
| Processor frequency | 1200 MHz |
| Sound power level (printing) | 6.9 dB |
| Sound pressure level (printing) | 55 dB |
| Ports & interfaces |
| USB port | Yes |

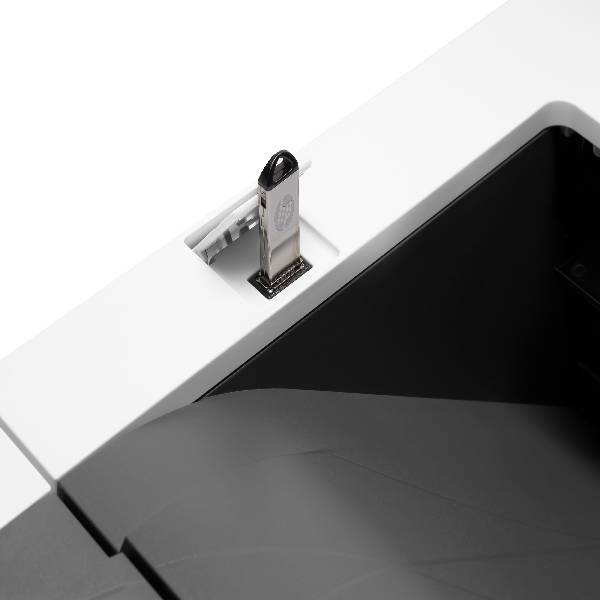

| Direct printing | Yes |
| Standard interfaces | Ethernet, USB 2.0, Wireless LAN |
| USB 2.0 ports quantity | 3 |
| Power |
| Power consumption (PowerSave) | 0.06 W |
| Power consumption (off) | 0.06 W |
| Energy Star Typical Electricity Consumption (TEC) | 1.257 kWh/week |
| AC input voltage | 220 - 240 V |
| Power consumption (ready) | 7.6 W |
| Power consumption (printing) | 601 W |
| AC input frequency | 50/60 Hz |
| Printing |
| Print margins (top, bottom, right, left) | 4.3 mm |
| Warm-up time | 150 s |
| Print resolution black | 1200 x 1200 DPI |
| Watermark printing | Yes |
| Secure printing | Yes |
| Time to first page (black, normal) | 5.9 s |
| Duplex printing mode | Auto |
| Sustainability |
| Sustainable technologies and materials | Mercury Free |
| Doesn´t contain | Mercury |
| Sustainability certificates | ENERGY STAR, Blue Angel |
| Sustainability compliance | Yes |
| System requirements |
| Linux operating systems supported | Yes |
| Other operating systems supported | Android, iOS |
| Windows operating systems supported | Windows 7 Enterprise, Windows 7 Ultimate, Windows 7 Professional, Windows 7 Starter, Windows 7, Windows 8 Pro, Windows 8 Enterprise, Windows 8, Windows 8.1 Pro, Windows 8.1 Enterprise, Windows 8.1, Windows 10 Pro, Windows 10 Enterprise, Windows 10 |
| Mac operating systems supported | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, MacOS |
| Technical details |
| Master (outer) cases per pallet layer | 6 pc(s) |

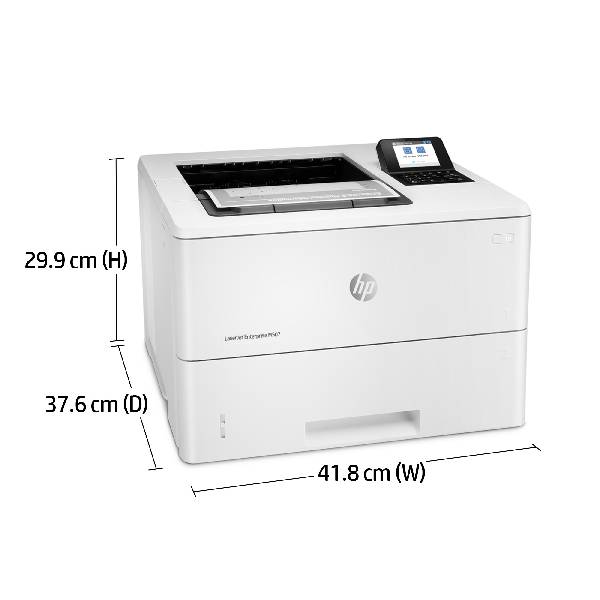

| Weight & dimensions |
| Height | 299 mm |
| Depth | 376 mm |
| Width | 418 mm |
| Pallet dimensions (W x D x H) | 1200 x 1000 x 2481 mm |
| Weight | 11.5 kg |
