| Design |
| Colour display | Yes |
| Built-in display | Yes |
| Display diagonal | 12.7 cm (5") |
| Product colour | Grey, White |
| Market positioning | Home & office |
| Control type | Touch |
| Features |
| Printer fonts | Bitmap, PCL, PostScript, Scalable |
| Printing colours | Black, Cyan, Magenta, Yellow |
| Country of origin | China |
| Number of PCL fonts | 93 |
| Number of print cartridges | 4 |
| Number of PostScript fonts | 173 |
| Page description languages | PCL 5c, PCL 6, PDF, PostScript 3 |
| Input & output capacity |
| Maximum input capacity | 2850 sheets |
| Multi-Purpose tray | Yes |
| Multi-Purpose tray input capacity | 100 sheets |
| Paper tray 1 input capacity | 550 sheets |
| Network |
| Cabling technology | 10/100/1000Base-T(X) |
| Near Field Communication (NFC) | Yes |
| Supported network protocols (IPv4) | TCP/IP: HTTP/HTTPS, Internet Printing Protocol, LPR/LPD, Raw Socket Printing/Port 9100, IPv4/IPv6, WSD |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Mobile printing technologies | Apple AirPrint, Mopria Print Service |
| Operational conditions |
| Operating temperature (T-T) | 10 - 32.2 °C |
| Operating relative humidity (H-H) | 15 - 85% |
| Other features |
| Bidirectional | Yes |
| Box contents | - AC Power Cord
- Installation Guide
- Product Information Flyer
- Product Safety Sheet
- Software Update Flyer
- Software and Documentation CD

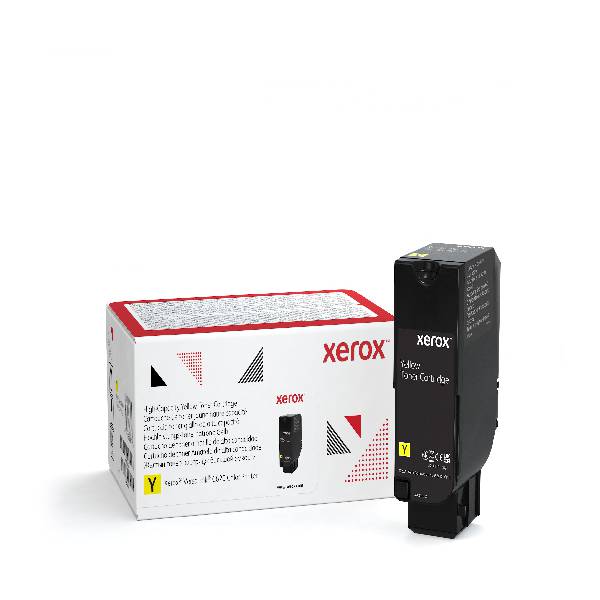

- Cyan, Magenta, Yellow Print Cartridges - 7,000 page capacity; Black Print Cartridge - 8,000 page capacity |
| Recommended system requirements | Print from USB, Print from Cloud Repositories (Dropbox, OneDrive, and Google Drive), Encrypted Secure Print, Xerox® WorkCentre® Earth Smart Driver Settings,
Job Identification, Booklet Layout, Store and Recall Driver Settings, Bi-directional Real-time Status, Scaling, Job Monitoring, Application Defaults,
Two-sided Printing (as default), Hold All Jobs, Print Around, Print on Alternate Paper |
| Packaging content |
| Cartridge(s) included | Yes |
| Packaging data |
| Package weight | 38.5 kg |
| Package depth | 720 mm |
| Package width | 625 mm |
| Package height | 567 mm |
| Paper handling |
| Paper tray media types | Bond paper, Card stock, Envelopes, Labels, Letterhead, Lightweight paper, Plain paper, Pre-printed, Recycled paper |
| ISO A-series sizes (A0...A9) | A4, A4+, A5 |
| Custom media length | 148 - 356 mm |
| Paper tray media weight | 60 - 218 g/m² |
| Custom media width | 105 - 216 mm |
| Maximum print size | 216 x 356 mm |
| Performance |
| Storage media | eMMC |
| Built-in processor | Yes |
| Internal storage capacity | 32 GB |
| Sound power level (standby) | 30 dB |
| Sound power level (printing) | 70 dB |
| Processor frequency | 1200 MHz |
| Sound pressure level (printing) | 55 dB |
| Processor cores | 4 |
| Ports & interfaces |
| USB connector | USB Type-A / USB Type-B |
| USB 2.0 ports quantity | 2 |
| USB port | Yes |
| Direct printing | Yes |
| Optional connectivity | Bluetooth, Wireless LAN |
| Power |
| Power consumption (standby) | 25 W |
| AC input frequency | 50/60 Hz |
| Current rating | 5 A |
| Power consumption (printing) | 702 W |
| Power consumption (off) | 1 W |
| Energy Star Typical Electricity Consumption (TEC) | 0.65 kWh/week |
| AC input voltage | 220 - 240 V |
| Printing |
| Time to first page (colour, normal) | 6.6 s |
| Duplex print speed (black, normal quality, A4/US Letter) | 40 ppm |
| Duplex print speed (colour, normal quality, A4/US Letter) | 40 ppm |
| Duplex printing mode | Auto |
| Warm-up time | 116 s |
| Print resolution colour | 1200 x 1200 DPI |
| Print resolution black | 1200 x 1200 DPI |
| N-up printing | 2, 4, 6, 8, 9, 16 |
| Print speed (colour, normal quality, A4/US Letter) | 52 ppm |
| Secure printing | Yes |
| Warm-up time (from sleep mode) | 2.9 s |
| Booklet printing function | Yes |
| Time to first page (black, normal) | 5.6 s |
| Sustainability |
| Sustainability certificates | Blue Angel, ENERGY STAR, EPEAT |
| System requirements |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Server operating systems supported | Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 x64, Windows Server 2019 |
| Weight & dimensions |

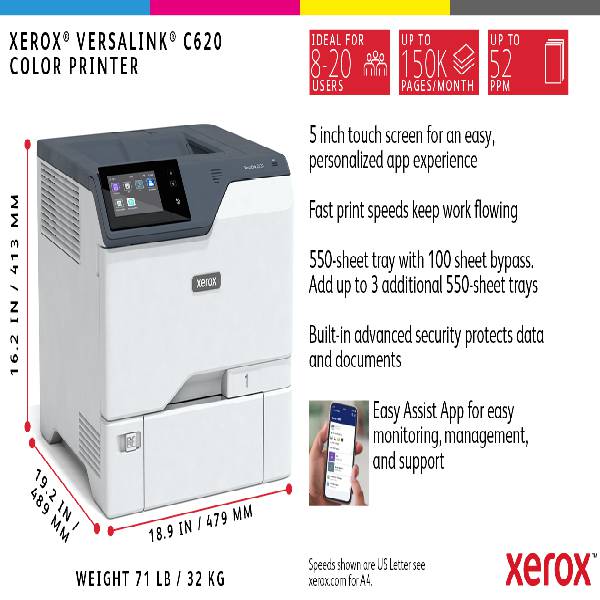

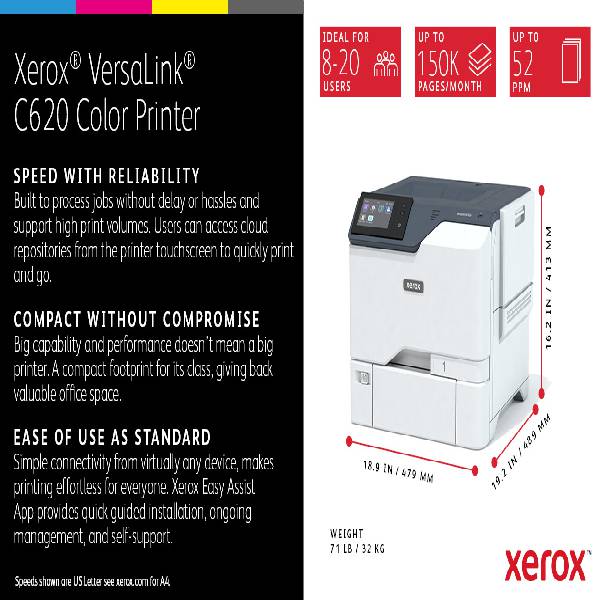

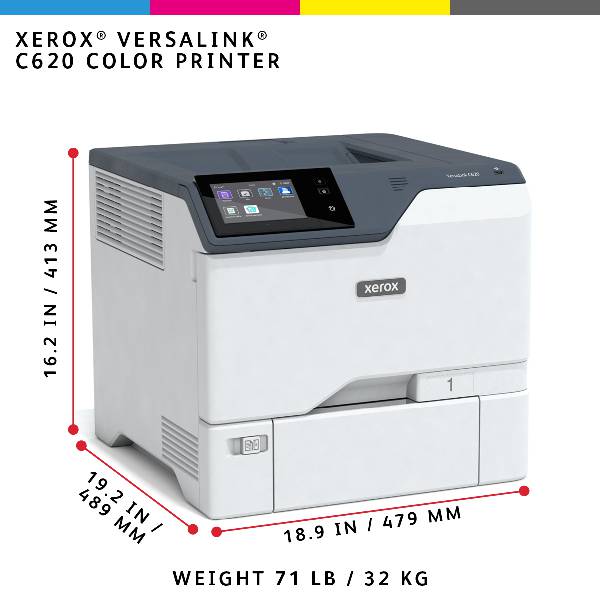

| Width | 479 mm |
| Depth | 489 mm |
| Weight | 32 kg |
| Height | 413 mm |
